SD PLUS 4.2KW Off Grid Inverter with AI Assistant
Model: SD-PLUS-2442WP-EU
Elevate your energy independence with this high-performance 5200W Hybrid Inverter, engineered for maximum efficiency and seamless reliability. Designed to adapt to modern solar demands, it features a wide 60V-450V MPPT range and an 18A PV input current, ensuring compatibility with high-power modules and superior energy harvest even in fluctuating light conditions.
-
Key Specs & Visuals
-
-
Highlights
-
- Reliable Power Backup:Experience uninterrupted connectivity with UPS-level switching (<4ms), safeguarding your sensitive electronics during grid outages.
- Massive Scalability & Capacity:Manage heavy loads with a robust 137A discharge current and expand your system effortlessly by paralleling up to 9 units.
- Smart Energy Management:Optimize consumption via Dual Outputs for smart load prioritization, all while staying connected through an AI-driven assistant and real-time WiFi monitoring.
Request a Quote
Download Brochure
Core Advantages
Parallel Connection
Parallel connection with up to 9 units

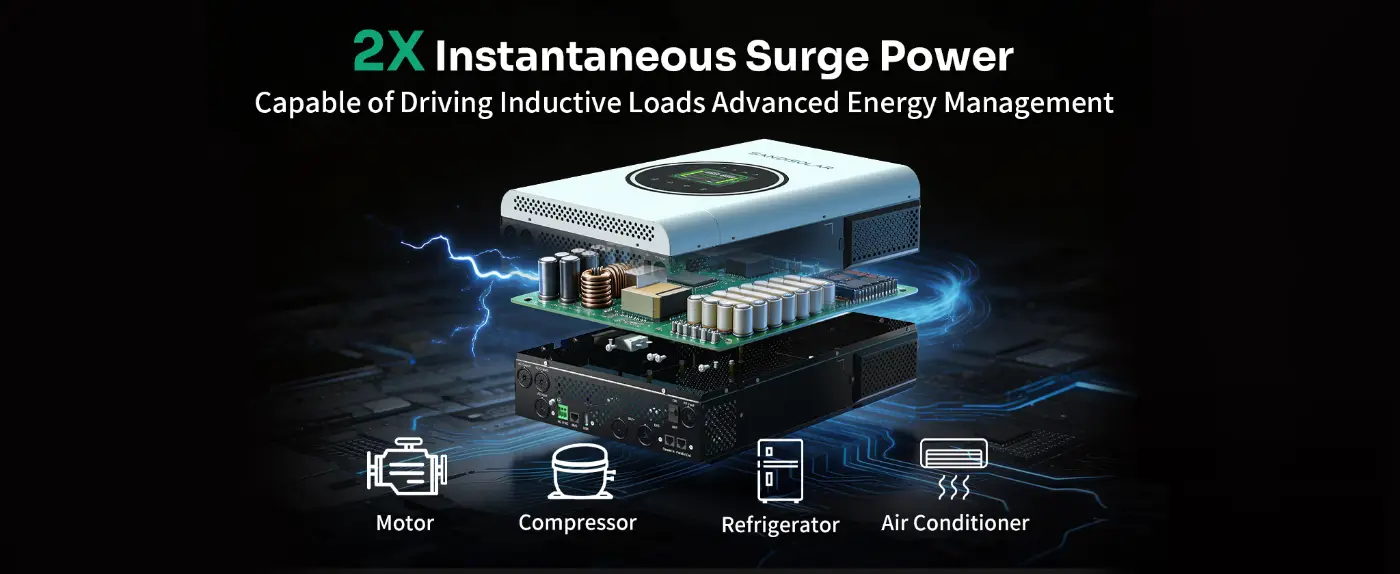

Enhanced Overload Capacity
2 times the rated power for 5 seconds

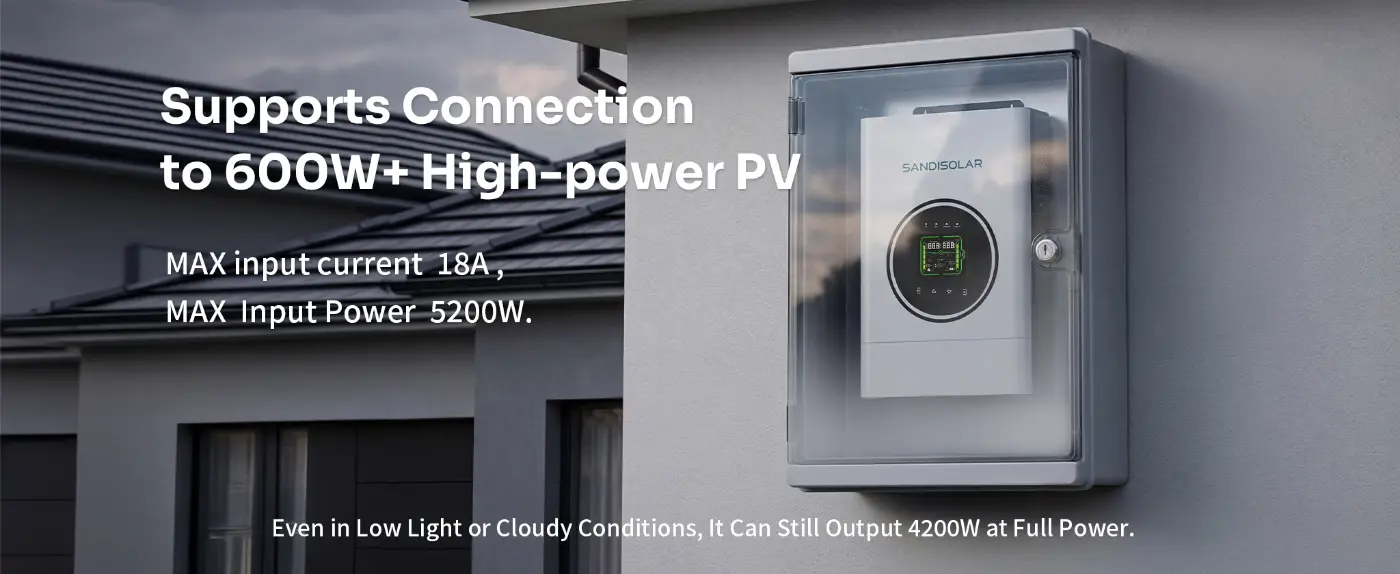

High-Power Module Compatibility
Higher PV input current up to 18A
Smart Load Management
Dual AC outputs to power loads on demand priority
Seamless Switchover
UPS-level switching time ≤ 4ms
Efficient Battery Charge/Discharge
Max. 120A charge current
Max.137A discharge current
Remote Monitoring
Built-in WiFi module for HaiPower monitoring
Stylish Design
Larger screen with touch keys
Technical Parameters

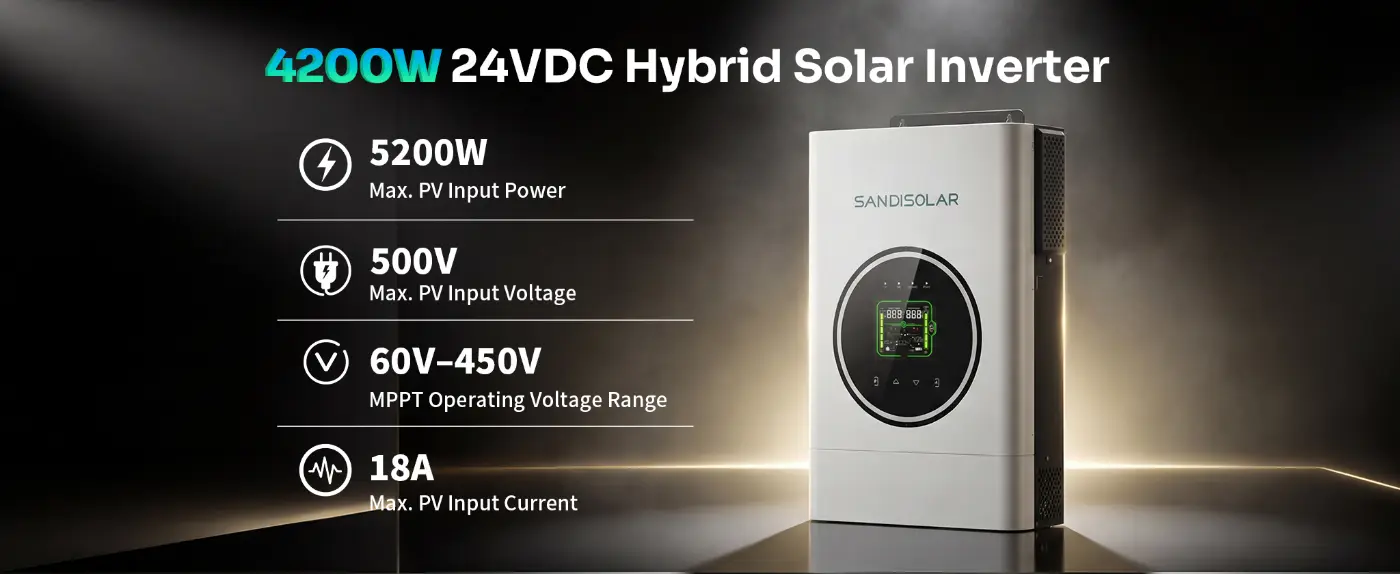

Solar Input Data
| Maximum PV Input Power | 5200W | Max. input Voltage | 500V |
| Start-up Voltage | 90V | MPPT Voltage Range | 60V-450V |
| Max. Input Current per MPPT | 18A | Max. Short Circuit Current per MPPT | 23A |
View Full Document
Application
SANDISOLAR’s off-grid inverters are engineered to deliver robust and reliable power independence for a wide spectrum of applications where grid connection is unavailable, unreliable, or economically unviable. Our systems serve as the cornerstone of energy autonomy, empowering operations across diverse sectors.

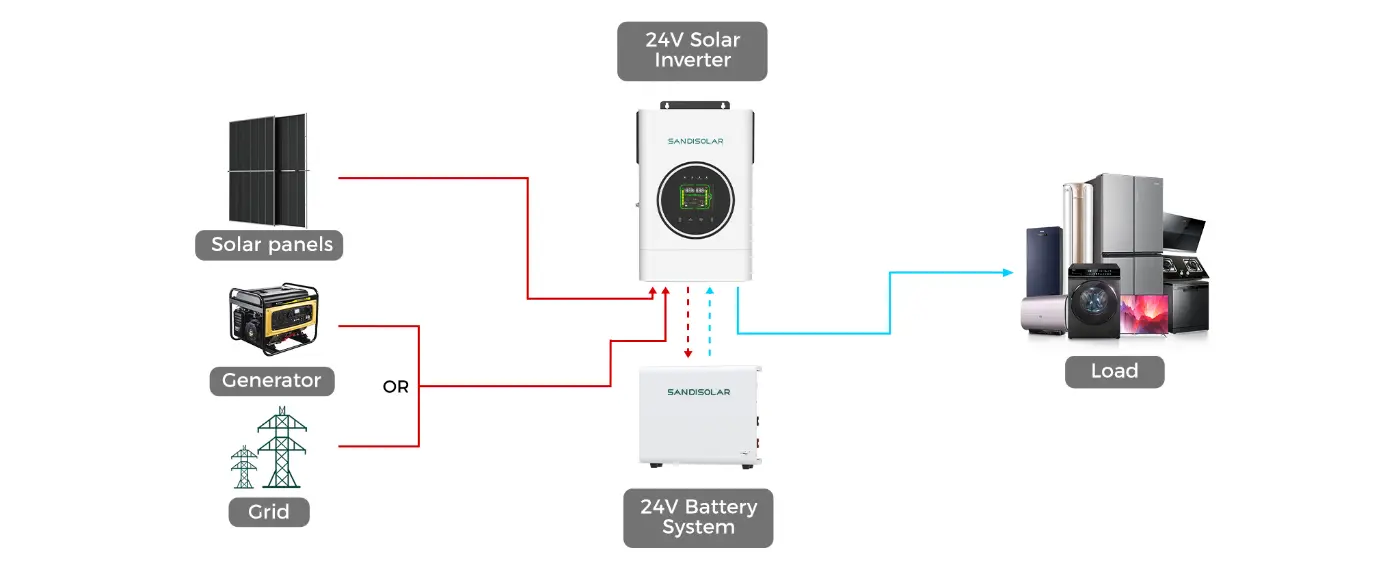

Off-grid inverter systems are ideally suited for use in the following locations without grid access or with an unstable power supply: Remote areas (Mountains, ranches, islands, field workstations), Mobile power supply (RVs, boats, campers), Emergency backup power (Serving as a backup power source for homes or critical facilities to cope with sudden power outages).
