Photos
SD-Rack-Mounted Hvs-R60
Model: SD-Rack-Mounted Hvs-R60
The SD-RACK-MOUNTED HVS-R60 is a high-performance, modular rack-mounted energy storage system designed for residential, commercial, and industrial energy storage needs. With its 60kWh ultra-large capacity and 614.4V high-voltage DC platform, it ensures efficient energy transmission and outstanding power output.
-
Key Specs & Visuals
-
-
Highlights
-
- 60kWh large capacity
- Modular architecture, flexible and scalable
- High-performance LiFePO4 battery cells, safe and reliable with long cycle life
- Wide operating temperature range, strong environmental adaptability
- Fully integrated, smart grid-connected functionality
- 614.4V high-voltage DC platform for superior efficiency
Request a Quote
Product Details
Description
The SD-RACK-MOUNTED HVS-R60 is a high-performance, modular rack-mounted energy storage system designed for residential, commercial, and industrial energy storage needs. With its 60kWh ultra-large capacity and 614.4V high-voltage DC platform, it ensures efficient energy transmission and outstanding power output.
Featuring a highly modular architecture, the system consists of 12 independent 5.12kWh battery packs, supporting flexible expansion and convenient maintenance. Each battery pack utilizes high-performance LiFePO4 cells, offering core advantages of safety, reliability, and a long cycle life.
The product demonstrates strong environmental adaptability, capable of stable operation within a wide temperature range of -20°C to 55°C, effectively meeting challenges in extreme cold and heat. The system is fully integrated with a 30kW three-phase hybrid inverter, enabling seamless connectivity with the grid and loads, and perfectly supporting solar power generation, storage, and intelligent energy management.
In summary, with its modular design, large capacity, high reliability, and smart integration, the SD-RACK-MOUNTED HVS-R60 provides users with a plug-and-play, efficient, and stable all-in-one energy storage solution.
Technical Parameters
| Energy | 5.12KWh | Nominal Voltage | 51.2V |
| Operating Voltage Range | 46.4V-57.6V | Nominal Capacity | 100Ah |
| Standard Charging Rate | 0.5C/25℃ | Insulation Properties | ≥1000Ω/V |
View Full Document
Application
The SD-RACK-MOUNTED HVS-R60 battery is engineered for scenarios demanding robust, scalable, and long-duration energy storage. Its rack-mounted design allows for seamless integration into existing power systems, making it an ideal solution for a wide range of applications.

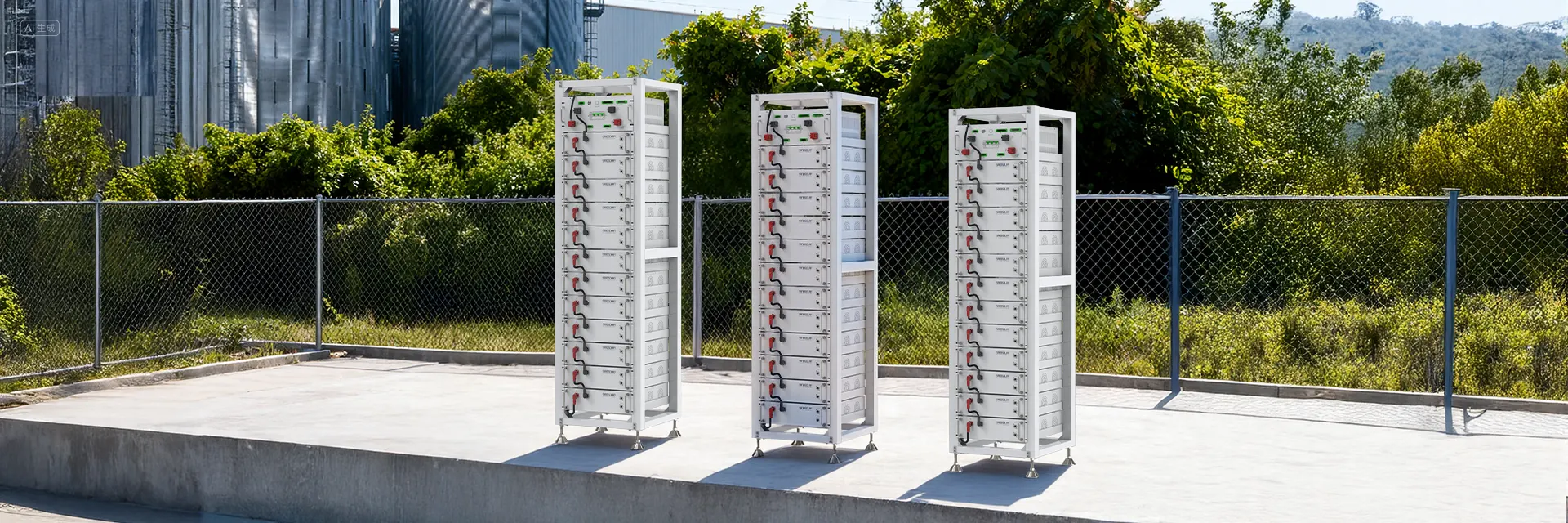

It serves as the core energy reservoir for commercial and industrial (C&I) energy storage systems, effectively managing peak shaving to reduce electricity costs and providing critical backup power to safeguard operations during grid outages.
